Intel® Xeon® Processor E5-2600 Product Family The Intel® Xeon® processor E5-2600 product family is at the heart of a flexible and efficient data center that meets your diverse needs. These engineering marvels are designed to deliver the best combination of performance, energy efficiency, built-in capabilities, and cost-effectiveness. From virtualization and cloud computing to design automation or real-time financial transactions, you'll be delighted by better than ever performance and energy efficiency. I/O latency is dramatically reduced with Intel® Integrated I/O, which helps you to eliminate data bottlenecks, streamline your operations, and increase your agility. The Intel® Xeon® processor E5-2600 product family - versatile processors at the heart of today's data center.
| |
|---|
| Transource eSKU | 1033800084 |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 00YE897 |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Brand Name | Lenovo |
| Product Line | Xeon |
| Product Series | E5-2600 v4 |
| Product Model | E5-2640 v4 |

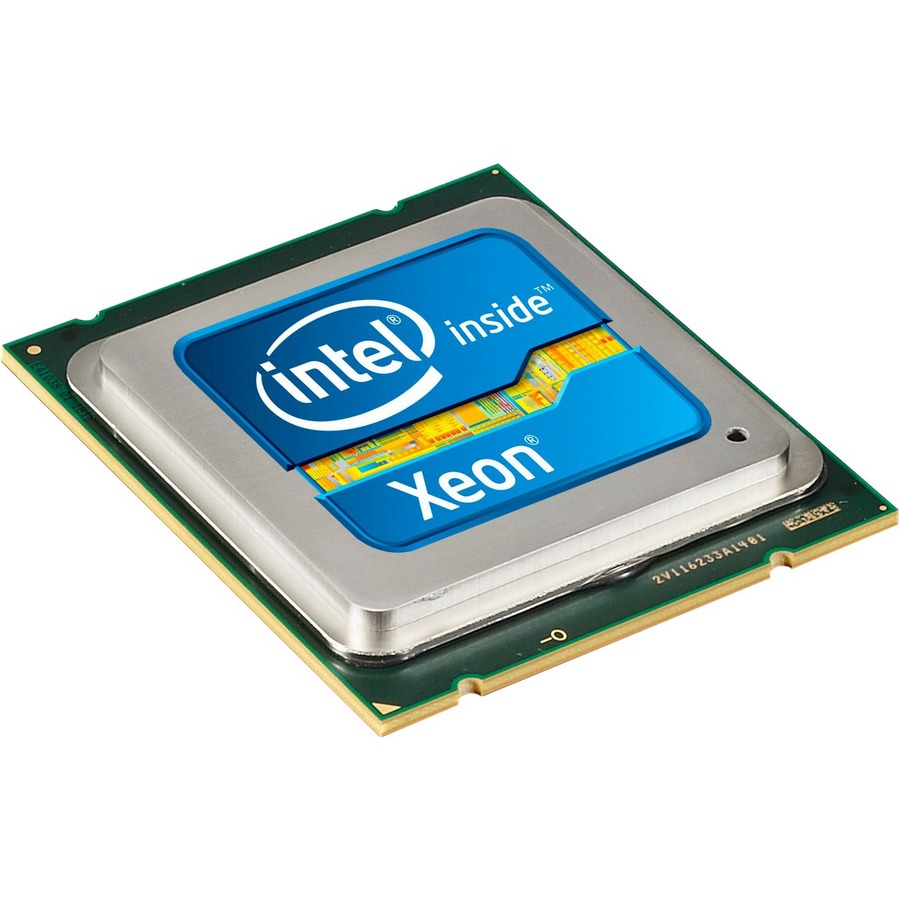

| Product Name | Xeon Deca-core E5-2640 v4 2.4GHz Server Processor Upgrade |
| Product Type | Processor Upgrade |
| |
|---|
| Technical Information |
| Processor Manufacturer | Intel |
| Processor Core | Deca-core (10 Core) |
| Clock Speed | 2.40 GHz |
| Overclocking Speed | 3.40 GHz |
| QuickPath Interconnect | 8 GT/s |
| L2 Cache | 2.50 MB |
| L3 Cache | 25 MB |
| 64-bit Processing | Yes |
| Process Technology | 14 nm |
| Processor Socket | Socket R3 (LGA2011-3) |
| Power Description |
| Thermal Design Power | 90 W |
| Environmental Conditions |
| Thermal Specification | 168.8°F (76°C) |
| Physical Characteristics |
| Width | 2.1" |
| Depth | 2" |
| Miscellaneous |
| Compatibility | Lenovo x3550 M5 Server |
