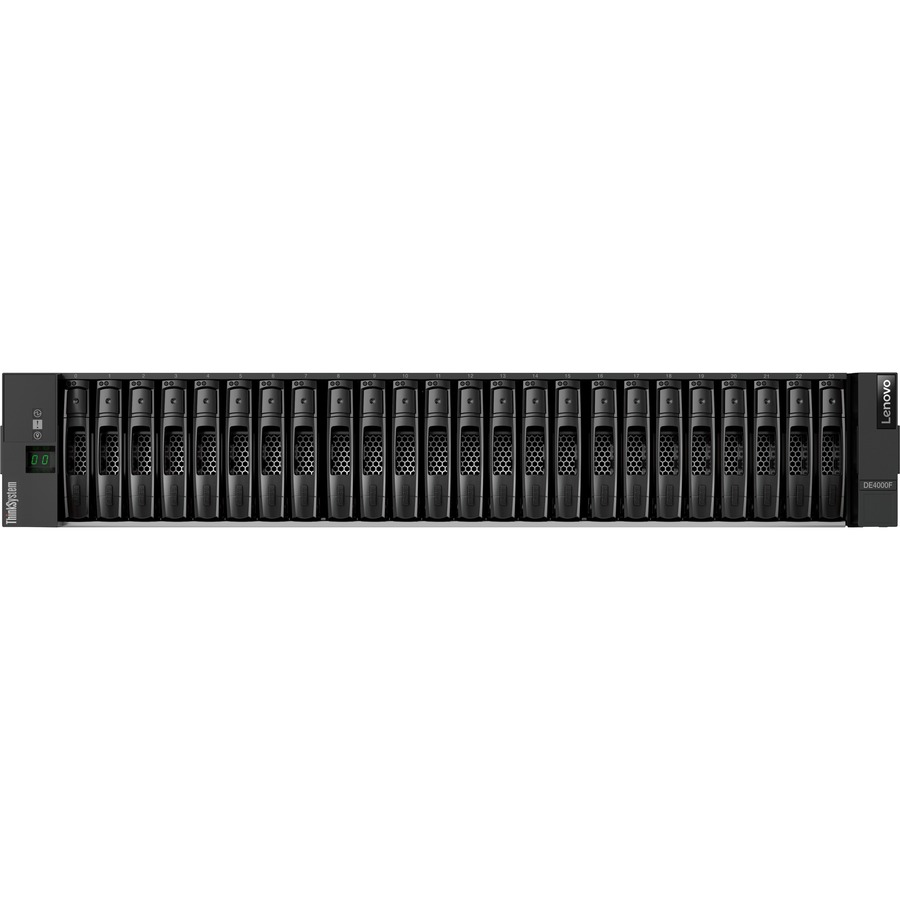

Lenovo ThinkSystem DE4000F is a scalable, all flash entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000F is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, and other storage I/O-intensive applications.
ThinkSystem DE4000F models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 8/16 Gb Fibre Channel (FC) ports provide base host connectivity, and the host interface cards provide additional 10 Gb iSCSI or 8/16 Gb FC, 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.
The ThinkSystem DE4000F Storage Array scales up to 192 solid-state drives (SSDs) with the attachment of Lenovo ThinkSystem DE240S 2U24 SFF Expansion Enclosures.
| |
| Transource eSKU | 1054341883 |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7Y76A002WW |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Brand Name | Lenovo |
| Product Line | ThinkSystem |
| Product Series | DE |
| Product Model | DE4000F |
| Product Name | ThinkSystem DE4000F iSCSI All Flash Array SFF |
| Packaged Quantity | 1 |
| Product Type | SAN Storage System |
| |
| Storage |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | No |
| Network & Communication |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions |
| Number of Total Expansion Bays | 24 |
| Number of 2.5" Bays | 24 |
| Controllers |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 3, 5, 6, 10 |
| Interfaces/Ports |
| Number of SAS Ports (External) | 4 |
| Network (RJ-45) | Yes |
| Management & Protocols |
| Protocols | SSH |
| Protocols | SMI-S |
| Protocols | SNMP |
| Protocols | LDAP |
| Protocols | SSL |
| Protocols | iSCSI |
| Power Description |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 913 W |
| Redundant Power Supply | Yes |
| Physical Characteristics |
| Height | 3.3" |
| Width | 17.7" |
| Depth | 21.8" |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
