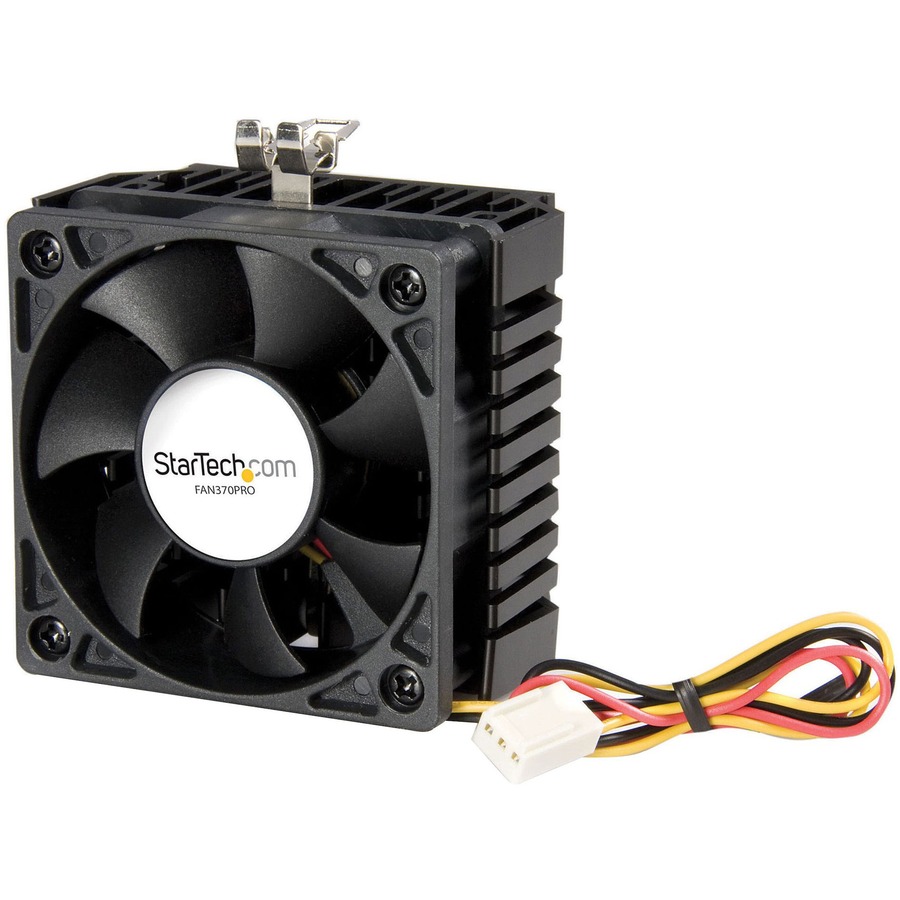

Measuring 65x60x45mm, this Socket 7/370 CPU Cooler/Fan is a combination heatsink and fan designed to cool high performance CPUs.
The Socket 7/370 CPU Cooler offers an extra-large heatsink combined with a quiet running 6x2 cm brushless ball bearing DC motor. The fan features a high-efficiency blade design capable of moving 21.46 CFM, providing enough cooling capacity for Pentium III and Celeron CPUs up to 1.4 GHz.
The Socket 7/370 CPU Cooler is powered through a TX3 (3-pin) connection to the computer power supply, and is a suitable cooling solution for Intel Pentium III and Celeron CPUs up to 1.4 GHz and AMD K6 processors at any speed.
Please note: to power the Socket 7/370 CPU cooler using an LP4 (4-pin) connection to the power supply, please see our TX3 to 2x LP4 Power Y Splitter Cable"" title=""TX3 to dual LP4 Power Y Splitter Cabl (CPUFANADAPT).
More from the Manufacturer
| |
| Transource eSKU | 10055506 |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | FAN370PRO |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Socket 7/370 CPU Cooler Fan w/ Heatsink |
| Packaged Quantity | 1 |
| Product Type | Cooling Fan/Heatsink |
| |
| Fan Information |
| Fan Bearing Type | Ball Bearing |
| Fan Speed (Max) | 4000 rpm |
| Maximum Airflow | 151.1 gal/min |
| Noise Levels | 31 dB(A) |
| Interfaces/Ports |
| Connectors | 3-pin TX3 Female |
| Physical Characteristics |
| Product Material | Plastic |
| Heatsink Material | Aluminum |
| Maximum Fan Diameter | 2.28" |
| Heatsink Height | 2.28" |
| Heatsink Width | 2.48" |
| Heatsink Depth | 0.79" |
| Fan Height | 2.28" |
| Fan Width | 2.28" |
| Fan Depth | 0.79" |
| Weight (Approximate) | 4.80 oz |
| Miscellaneous |
| Package Contents | - Socket 7/370 CPU Cooler Fan w/ Heatsink
- 1 x Packet of Thermal Compound
|
| Compatibility | - Intel: Celeron up to 866 MHz
- Pentium: Pentium III up to 866 MHz
- AMD: K6-2 & K6-3 up to 700 MHz
- Socket Type: Socket 7 & Socket 370
|
| Application/Usage | Processor |
| Environmentally Friendly | Yes |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Country of Origin | China |
| Warranty |
| Limited Warranty | 2 Year |
