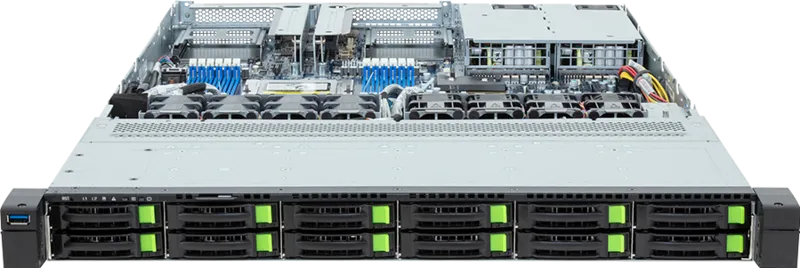

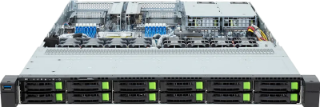

TBird-A16-1U High-Performance 1U Single-Socket Server

The TBird-A16-1U is an enterprise-grade high-density 1U rackmount server engineered for demanding data center applications, virtualized environments, cloud infrastructure, and compute-intensive enterprise workloads. Powered by a single AMD EPYC™ 9005 or 9004 series processor with up to 160 PCIe Gen5/Gen4 lanes, this compact platform delivers outstanding compute efficiency, ultra-fast memory throughput, and versatile storage capabilities in a 1U footprint.

Featuring advanced 12-channel DDR5 memory architecture across 24 DIMM slots, high-speed PCIe Gen5 expansion slots, flexible hot-swappable drive configurations, and redundant high-efficiency power supplies, the TBird-A16-1U provides a resilient and scalable foundation for modern enterprise IT infrastructure, high-density web hosting, and edge computing environments.

• Single-Socket Performance: Powered by a single AMD EPYC™ 9005 / 9004 Series Processor (LGA 6096 / Socket SP5) with up to 160 PCIe lanes.
• High-Density DDR5 Memory: Features 24 x DIMM slots supporting 12-channel DDR5 RDIMM memory architecture for massive bandwidth and capacity.
• Advanced PCIe Gen5 Expansion: Includes high-speed PCIe Gen5 x16 slots designed for add-in cards, high-speed networking, and an OCP NIC 3.0 slot.
• Versatile Storage Bays: Provides 12 x hot-swappable 2.5-inch Gen5 NVMe/SATA/SAS drive bays plus dual M.2 PCIe slots for fast system boot and data access.
• System Firmware Redundancy: Dual ROM architecture supports advanced firmware security, seamless BIOS recovery, and management flexibility.
• Redundant Power Design: Equipped with high-efficiency 1300W 80 PLUS Titanium redundant power supplies for maximum uptime.
• Integrated BMC Management: ASPEED AST2600 Baseboard Management Controller with dedicated LAN port for out-of-band monitoring and remote management.

• 1U Rackmount Server Chassis (438W x 43.5H x 815D mm)

• Single-socket SP5 platform
• Supports AMD EPYC™ 9005 and 9004 Series Processors (TDP up to 400W)

• 12-channel DDR5 RDIMM memory architecture
• 24 x DIMM slots (Supports up to 4800/6000 MT/s RDIMM dependent on CPU generation)

• 2 x FHHL PCIe Gen5 x16 expansion slots
• 1 x OCP 3.0 Gen5 x16 slot with NCSI support

• 12 x hot-swappable 2.5-inch Gen5 NVMe / SATA / SAS drive bays
• 2 x M.2 slots (2280/22110, PCIe Gen4 x4)

• 1 x 10/100/1000 Mbps Management LAN port
• Front and rear USB 3.2 Gen1 ports
• Mini-DP video output (integrated via ASPEED AST2600)

• Dual ROM architecture for firmware redundancy
• ASPEED AST2600 Baseboard Management Controller with GIGABYTE Management Console

• Dual 1300W 80 PLUS Titanium redundant power supplies (1+1 redundant)

• Cloud infrastructure and virtualized environments (VMware, KVM)
• High-density web server clusters and microservices
• Enterprise data management and database hosting
• Network function virtualization (NFV) and edge computing
• Compute-intensive software-defined storage nodes

Combining AMD EPYC™ 9005/9004 processing power, 24 DDR5 DIMM slots, PCIe Gen5 expansion, hot-swappable drive bays, and redundant Titanium power supplies, the TBird-A16-1U offers a scalable, efficient, and cost-effective compute solution tailored to modern server requirements.
