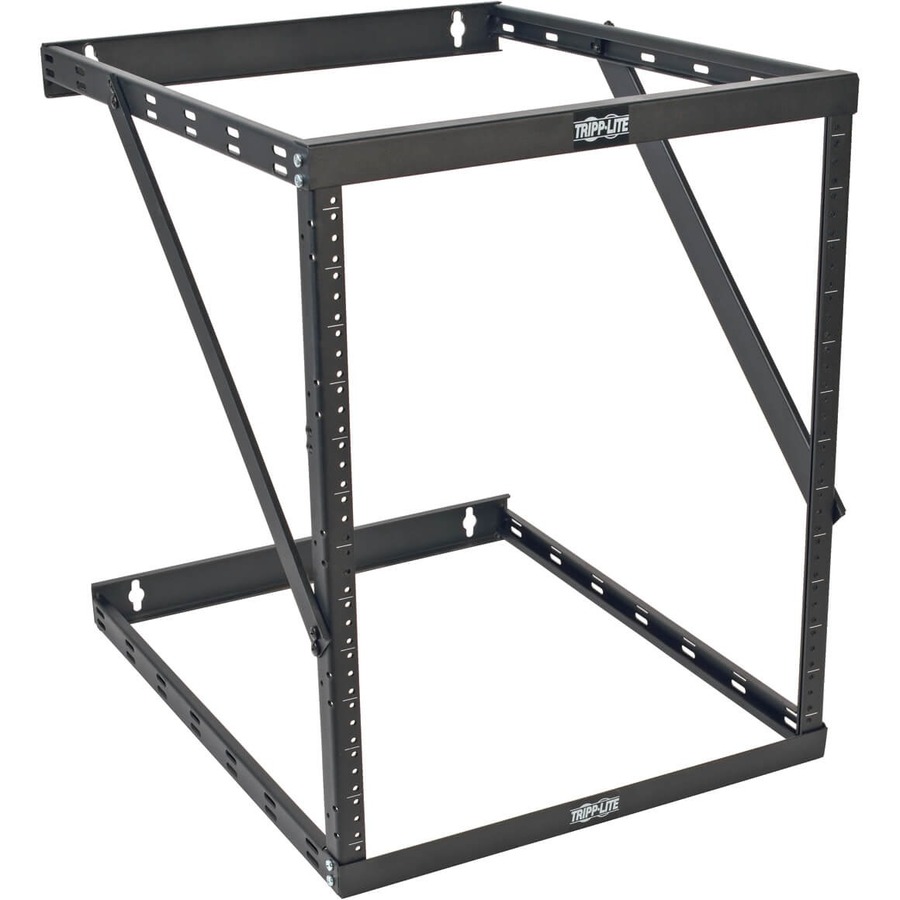

The SRWO8U22DP SmartRack 8U/12U/22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack is ideal for storing UPS systems, battery packs, power cords, network switches, patch panels and related cabling in secure IT areas with limited floor space. Mounted to the wall or resting on the floor, this rack offers fast, easy access to components and cabling. It's compatible with EIA-standard 19-inch rack equipment that supports two-post mounting and a maximum mounting depth of 23.5 inches.
Constructed from heavy-duty steel in a durable black powder-coated finish, the open-frame rack has a maximum load capacity of 150 pounds. The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion. It saves precious space and allows IT managers easy access for organizing, installing and servicing equipment and cabling.
The rack is easy to assemble using the included hardware. The vertical mounting rails have threaded 12-24 holes for securing equipment to the steel frame.
| |
| Transource eSKU | 1032126603 |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SRWO8U22DP |
| Manufacturer Website Address | http://www.tripplite.com |
| Brand Name | Tripp Lite |
| Product Line | SmartRack |
| Product Model | SRWO8U22DP |
| Product Name | SmartRack SRWO8U22DP Rack Frame |
| Product Type | Rack Frame |
| |
| Technical Information |
| Application/Usage | UPS |
| Application/Usage | Patch Panel |
| Application/Usage | LAN Switch |
| Physical Characteristics |
| Form Factor | Wall Mountable |
| Product Color | Black Powder Coat |
| Product Material | Steel |
| Maximum Weight Capacity | 150 lb |
| Height | 42.3" |
| Width | 20.1" |
| Depth | 24" |
| Weight (Approximate) | 16.87 lb |
| Rack Height | 22U |
| Rack Width | 19" |
| Rack Depth | 23.50" |
| Miscellaneous |
| Package Contents | - SmartRack SRWO8U22DP Rack Frame
- 24 x 12-24 equipment mounting screws
- 16 x M5 button-head cap screws
- 8 x M6 x 12 Phillips-head screws
- 2 x Short vertical mounting rails
- 2 x Long vertical mounting rails
- 2 x Mounting rail tie plates
- 2 x Metal support straps
- 2 x Top/bottom panel frames
- 8 x Zip ties
- 3 mm L-shaped hex key
- Owner's manual
|
| Assembly Required | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Country of Origin | China |
| Warranty |
| Limited Warranty | 5 Year |
