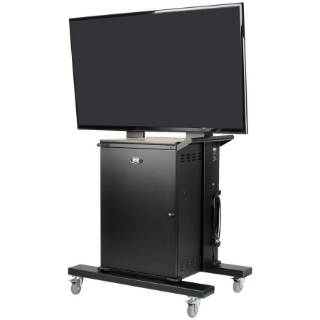

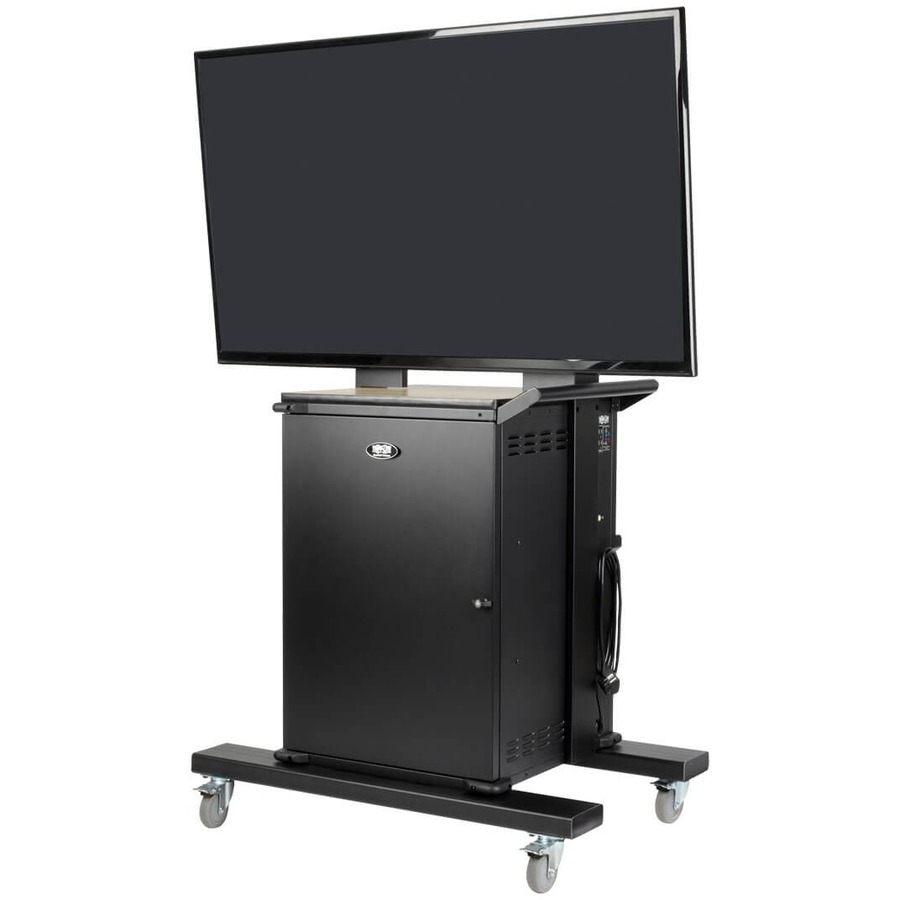

The CSC36DM Display Mount Adapter Kit includes all installation and mounting hardware needed to attach a flat-panel television or monitor to your Tripp Lite CSC36AC 36-Device AC Charging Station Cart. Recommended for schools, offices, warehouses, healthcare facilities and other environments in which tablets, laptops or Chromebooks are used on a daily basis, the CSC36DM fits most flat- or recessed-back displays up to 60 inches.
A -10° to 0° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Adjusting the tilt angle is simple using the easy-grip twin knobs located on the adapter brackets. The durable all-metal unit with scratch-resistant powder-coated finish supports up to 100 pounds.
The CSC36DM is designed to fit through standard doorways when assembled. It conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm.
Features
Mounts Your TV or Monitor to YourCSC36AC Charging Station Cart
- Fits most flat-panel televisions or monitors up to 60 in.
- Ideal for schools, offices, warehouses, healthcare facilities and other environments in which tablets, laptops or Chromebooks are used every day
- All installation and mounting hardware included
Convenient Angle Adjustment
- -10° to 10° tilt capability provides comfortable viewing from multiple angles
- Improves viewing angles in applications where audience is below the display
- Easy-grip knobs allow simple adjustment of tilt angle
Durable Metal Construction
- Supports up to 100 lb.
- Scratch-resistant powder-coated finish
- Easily rolls through standard doorways when assembled
VESA Compliance
- Supports the following VESA mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm
Package Includes
- Display plate
- (2) Adapter brackets
- (2) Outrigger tubes
- (2) Upright supports
- (24) M8 x 16 screws
- (8) M6 x 15 screws
- (4) M5 x 14 screws
- (4) M6 x 14 screws
- (4) M8 x 20 screws
- (4) M6 x 30 screws
- (4) M8 x 30 screws
- (4) Washers
- (8) Small spacers
- (4) Big spacers
- Installation guide
| |
| Transource eSKU | 1041987743 |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | CSC36DM |
| Manufacturer Website Address | http://www.tripplite.com |
| Brand Name | Tripp Lite |
| Product Model | CSC36DM |
| Product Name | Display Mount Adapter Kit for 36-Device AC Charging Station Cart |
| Product Type | Mounting Adapter Kit |
| |
| Product Information |
| Device Supported | Flat Panel Display |
| Maximum Load Capacity | 100 lb |
| Maximum Screen Size Supported | 60" |
| Physical Characteristics |
| Color | Black |
| VESA Mount Standard | 200 x 200 |
| VESA Mount Standard | 300 x 300 |
| VESA Mount Standard | 400 x 200 |
| VESA Mount Standard | 400 x 400 |
| VESA Mount Standard | 600 x 400 |
| VESA Mount Standard | 800 x 400 |
| Height | 57.5" |
| Width | 29.5" |
| Depth | 42" |
| Weight (Approximate) | 92.84 lb |
| Miscellaneous |
| Package Contents | - Display Plate
- 2 x Adapter Bracket
- 2 x Outrigger Tube
- 2 x Upright Support
- Mounting Hardware
- Installation Guide
|
| Compatibility | Tripp Lite CSC36AC Charging Station Cart |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Country of Origin | China |
| Warranty |
| Limited Warranty | 5 Year |
