Overview

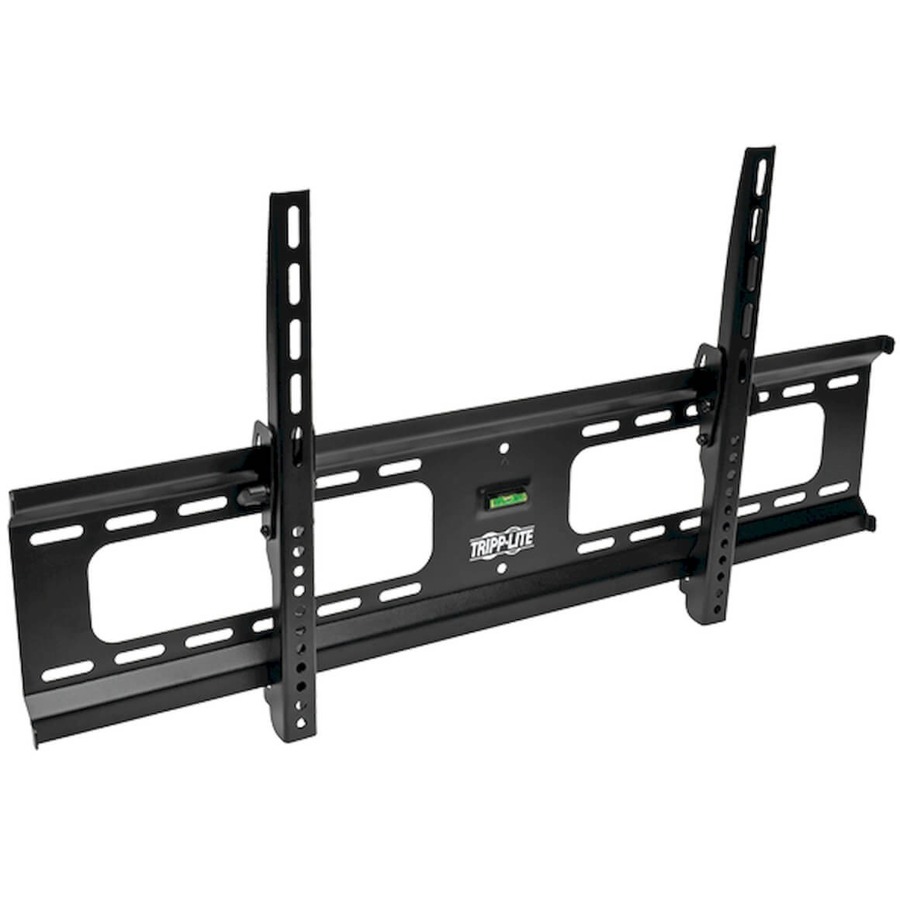

The VESA-compliant DWT3780XUL Heavy-Duty Tilt Wall Mount allows you to mount your flat-panel or curved-screen television, monitor or other display on the wall. Recommended for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most displays from 37 to 80 inches.
A -10° to 0° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Adjusting the tilt angle is simple using the easy-grip twin knobs located on the wall plate.
The mount is concealed behind the display to give a sleek, professional appearance. An open back enables easy access to cabling. Built-in bubble level allows accurate wall plate leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 pounds. Mounting hardware included.
Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm.
This mount has been tested in accordance with UL Standard 2442.
Features
Mounts Your TV or Monitor to the Wall
- Fits most flat-panel or curved-screen televisions, monitors and other displays from 37 to 80 in.
- Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
- Mounts out of sight behind display for sleek, professional appearance
- Mounting hardware included
Convenient Angle Adjustment
- -10° to 0° tilt capability provides comfortable viewing from multiple angles
- Improves viewing angles in applications where audience is below the display
- Easy-grip knobs allow simple adjustment of tilt angle
Durable Metal Construction
- Supports up to 165 lb.
- Open architecture enables easy access to cabling
- Built-in bubble level for accurate display leveling
- Scratch-resistant powder-coated finish
- Tested in accordance with UL Standard 2442
| |
| Transource eSKU | 1040412597 |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | DWT3780XUL |
| Manufacturer Website Address | http://www.tripplite.com |
| Brand Name | Tripp Lite |
| Product Model | DWT3780XUL |
| Product Name | DWT3780XUL Wall Mount |
| Product Type | Wall Mount |
| |
| Product Information |
| Device Supported | Monitor |
| Maximum Load Capacity | 165 lb |
| Maximum Screen Size Supported | 80" |
| Physical Characteristics |
| Color | Black |
| VESA Mount Standard | 400 x 400 |
| VESA Mount Standard | 600 x 400 |
| VESA Mount Standard | 400 x 200 |
| VESA Mount Standard | 300 x 300 |
| VESA Mount Standard | 200 x 200 |
| VESA Mount Standard | 800 x 400 |
| Height | 33.5" |
| Width | 1.8" |
| Depth | 8" |
| Weight (Approximate) | 7.89 lb |
| Miscellaneous |
| Package Contents | - Wall Plate
- 2 x Adapter Brackets
- 4 x M5 x 14 Screws
- 4 x M6 x 14 Screws
- 4 x M6 x 30 Screws
- 4 x M8 x 30 Screws
- 4 x M8 x 50 Screws
- 4 x Washers
- 8 x Small Spacers
- 8 x Big Spacers
- 6 x Anchor Bolts
- 6 x Concrete Anchors
- 6 x D6 Washers
- Owner's Manual
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Country of Origin | China |
| Warranty |
| Limited Warranty | 5 Year |
