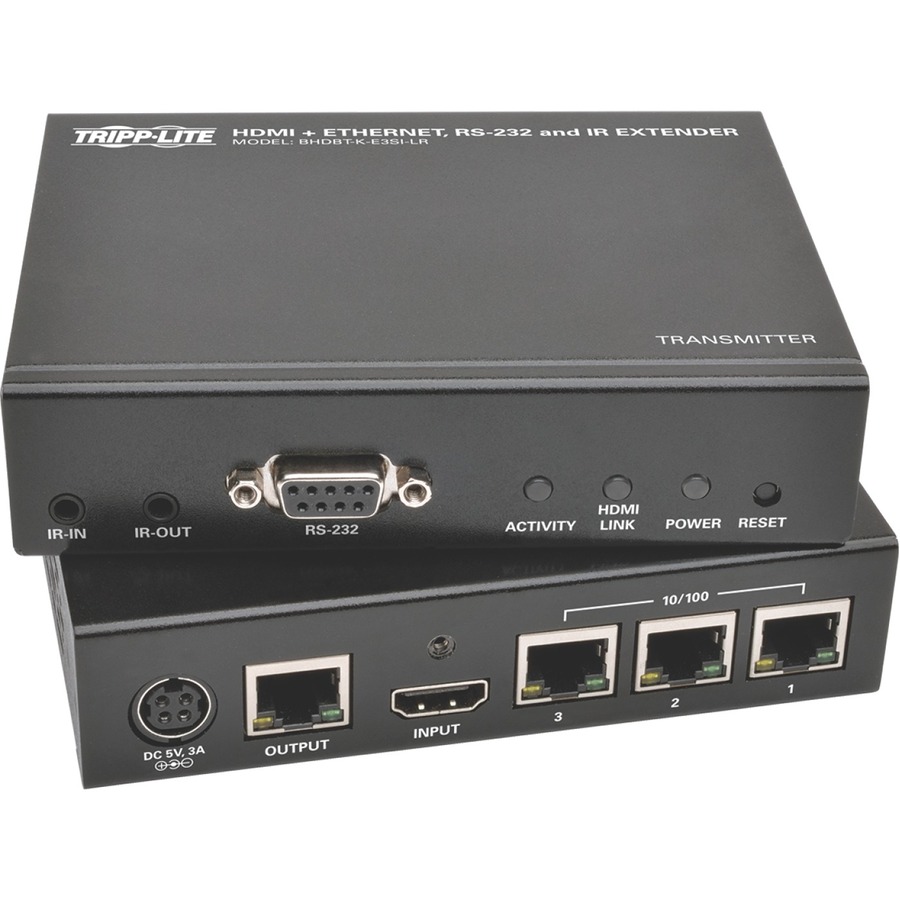

The BHDBT-K-E3SI-LR HDBaseT HDMI over Cat5e/6/6a Extender Kit extends uncompressed HDMI audio and video, RS-232 serial and IR remote control signals up to 328 feet over a single Cat5e/6/6a cable, including an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) signal.
In addition to HDMI, RS-232 and IR signals, this extender kit features three built-in 10/100 Ethernet ports on both the transmitter and receiver units. This allows connected devices, such as a Blu-ray™ player, cable/satellite box, and HDMI television, to communicate with each other and access online content via LAN.
You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The two-way IR remote control feature(@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports(ideal for use with Tripp Lite's P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal.
The plug-and-play BHDBT-K-E3SI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP.
| |
| Transource eSKU | 1032552000 |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | BHDBT-K-E3SI-LR |
| Manufacturer Website Address | http://www.tripplite.com |
| Brand Name | Tripp Lite |
| Product Model | BHDBT-K-E3SI-LR |
| Product Name | BHDBT-K-E3SI-LR Video Console/Extender |
| Product Type | Video Extender Transmitter/Receiver |
| |
| Technical Information |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 328 ft |
| Video |
| Graphics Modes | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6a |
| Miscellaneous |
| Package Contents | - Transmitter Unit
- Receiver Unit
- IR-IN Cable
- IR-OUT Cable
- 2 x External power supplies (Input: 100-240V, 50/60 Hz, 1A; Output: 5V, 3A)
- Mounting Hardware
- Owner's Manual
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty |
| Limited Warranty | 1 Year |
