Tripp Lite HDMI Over Cat5/Cat6 Active Video Extender Remote 1080p 60Hz 200'

Tripp Lite HDMI Over Cat5/Cat6 Active Video Extender Remote 1080p 60Hz 200' - 1 Input Device - 1 Output Device - 200 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - Twisted Pair - TAA Compliant
SKU: 1000206168
Manufacturer part number: B126-1A0
Free shipping
Manufacturer: Tripp Lite
Old price: $221.60
$139.47

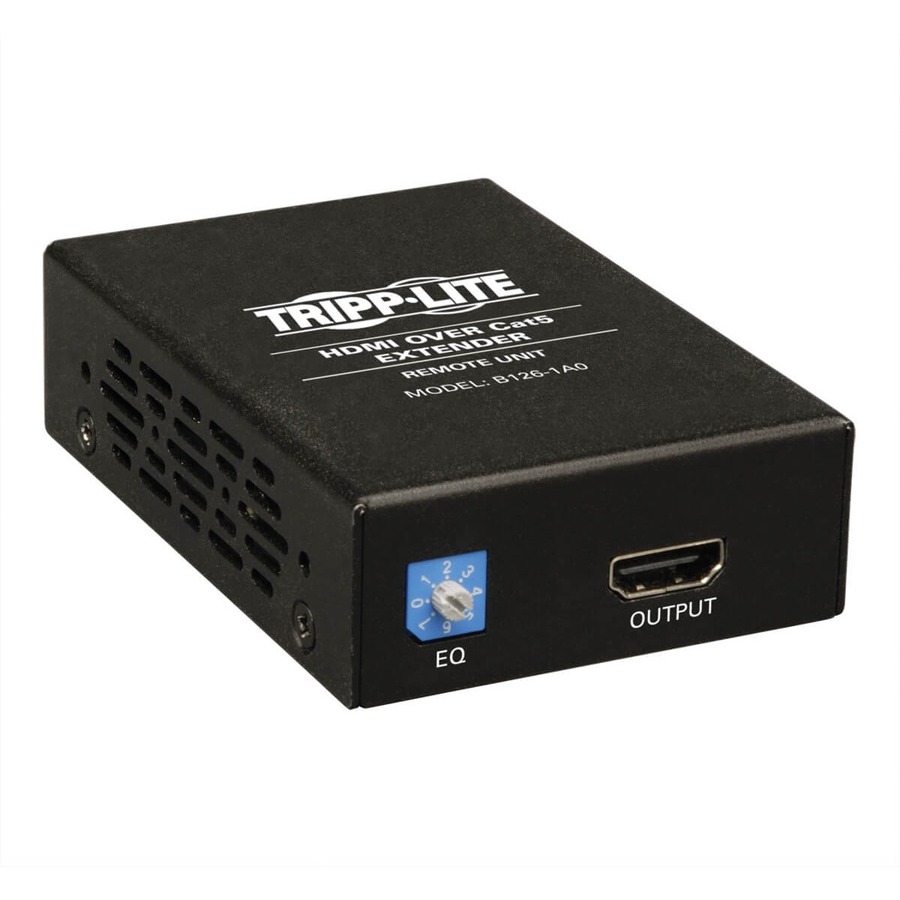

Picture of Tripp Lite HDMI Over Cat5/Cat6 Active Video Extender Remote 1080p 60Hz 200'

The B126-1A0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Product Information

Transource eSKU1017538546
ManufacturerTripp Lite by Eaton
Manufacturer Part NumberB126-1A0
Manufacturer Website Addresshttp://www.tripplite.com
Brand NameTripp Lite
Product ModelB126-1A0
Product NameB126-1A0 Video Console
Product TypeVideo Extender Receiver

Product Specifications

Technical Information
Connectivity TechnologyWired
Number of Input Devices Supported1
Number of Output Devices Supported1
Maximum Operating Distance200 ft
Interfaces/Ports
Network (RJ-45)Yes
HDMI OutYes
Number of Network (RJ-45) Ports1
Number of HDMI Outputs1
Media & Performance
Media Type SupportedTwisted Pair
Twisted Pair Cable StandardCategory 6
Physical Characteristics
Product ColorBlack
Receiver Height1"
Receiver Width2.50"
Receiver Depth3.60"
Form FactorWall Mountable
Miscellaneous
Package Contents
  • B126-1A0 Video Console
  • Screwdriver for Adjustment of Equalization
  • Mounting Hardware
  • External Power Supply
  • Owner's manual
Environmental CertificationRoHS
Country of OriginTaiwan
TAA CompliantYes
Warranty
Limited Warranty1 Year

The B126-1A0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
