Tripp Lite HDMI over Cat5/Cat6 Active Video Extender / Remote Repeater 1080p 175'

Tripp Lite HDMI over Cat5/Cat6 Active Video Extender / Remote Repeater 1080p 175' - 1 Input Device - 2 Output Device - 700 ft Range - 2 x Network (RJ-45) - 1 x HDMI Out - Twisted Pair - Category 5 - Wall Mountable, Rack-mountable, Pole-mountable - TAA Compliant
SKU: 1000224485
Manufacturer part number: B126-110
Free shipping
Manufacturer: Tripp Lite
Old price: $313.60
$197.37

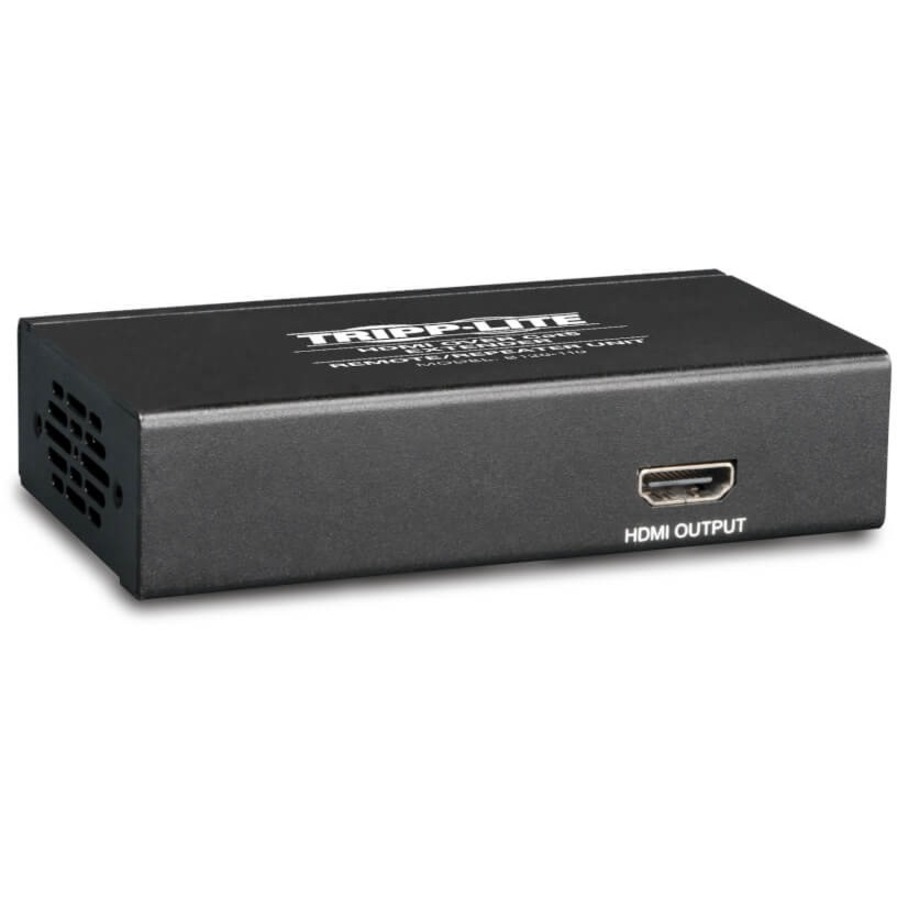

Picture of Tripp Lite HDMI over Cat5/Cat6 Active Video Extender / Remote Repeater 1080p 175'

The B126-110 remote repeater unit can be added to your Tripp Lite B126-Series HDMI over Cat5 installation to increase the extension distance and/or add additional monitors. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple; just insert the B126-110 repeater into the middle of your installation. In the case of a B126-1A1 extender kit, the transmitter is connected to the HDMI source using a Tripp Lite P568-Series HDMI cable (not included). It is then connected via Cat5e/6 cable to the B126-110, which is connected via Cat5e/6 cable to the B126-1A1 receiver unit. Finally, a monitor is connected to each remote receiver and repeater unit using Tripp Lite P568-Series HDMI cable (not included). The B126-110 unit is TAA GSA Compliant.

Product Information

Transource eSKU1021822079
ManufacturerTripp Lite by Eaton
Manufacturer Part NumberB126-110
Manufacturer Website Addresshttp://www.tripplite.com
Brand NameTripp Lite
Product ModelB126-110
Product NameB126-110 Video Extender
Product TypeVideo Extender Transmitter/Receiver

Product Specifications

Technical Information
Connectivity TechnologyWired
Number of Input Devices Supported1
Number of Output Devices Supported2
Maximum Operating Distance700 ft
Interfaces/Ports
Network (RJ-45)Yes
HDMI OutYes
Number of Network (RJ-45) Ports2
Number of HDMI Outputs1
Media & Performance
Media Type SupportedTwisted Pair
Twisted Pair Cable StandardCategory 5
Physical Characteristics
Product ColorBlack
Transmitter Height1"
Transmitter Width4.50"
Transmitter Depth2.50"
Form FactorWall Mountable
Form FactorRack-mountable
Form FactorPole-mountable
Miscellaneous
Package Contents
  • Video Extender
  • External AC Power Adapter
  • Mounting Hardware
  • Screwdriver for Equalization Adjustment
  • User Manual
Environmentally FriendlyYes
Environmental CertificationRoHS
Environmental CertificationWEEE
Country of OriginTaiwan
TAA CompliantYes
Warranty
Limited Warranty1 Year

The B126-110 remote repeater unit can be added to your Tripp Lite B126-Series HDMI over Cat5 installation to increase the extension distance and/or add additional monitors. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple; just insert the B126-110 repeater into the middle of your installation. In the case of a B126-1A1 extender kit, the transmitter is connected to the HDMI source using a Tripp Lite P568-Series HDMI cable (not included). It is then connected via Cat5e/6 cable to the B126-110, which is connected via Cat5e/6 cable to the B126-1A1 receiver unit. Finally, a monitor is connected to each remote receiver and repeater unit using Tripp Lite P568-Series HDMI cable (not included). The B126-110 unit is TAA GSA Compliant.

Product Information

Transource eSKU1021822079
ManufacturerTripp Lite by Eaton
Manufacturer Part NumberB126-110
Manufacturer Website Addresshttp://www.tripplite.com
Brand NameTripp Lite
Product ModelB126-110
Product NameB126-110 Video Extender
Product TypeVideo Extender Transmitter/Receiver

Product Specifications

Technical Information
Connectivity TechnologyWired
Number of Input Devices Supported1
Number of Output Devices Supported2
Maximum Operating Distance700 ft
Interfaces/Ports
Network (RJ-45)Yes
HDMI OutYes
Number of Network (RJ-45) Ports2
Number of HDMI Outputs1
Media & Performance
Media Type SupportedTwisted Pair
Twisted Pair Cable StandardCategory 5
Physical Characteristics
Product ColorBlack
Transmitter Height1"
Transmitter Width4.50"
Transmitter Depth2.50"
Form FactorWall Mountable
Form FactorRack-mountable
Form FactorPole-mountable
Miscellaneous
Package Contents
  • Video Extender
  • External AC Power Adapter
  • Mounting Hardware
  • Screwdriver for Equalization Adjustment
  • User Manual
Environmentally FriendlyYes
Environmental CertificationRoHS
Environmental CertificationWEEE
Country of OriginTaiwan
TAA CompliantYes
Warranty
Limited Warranty1 Year
