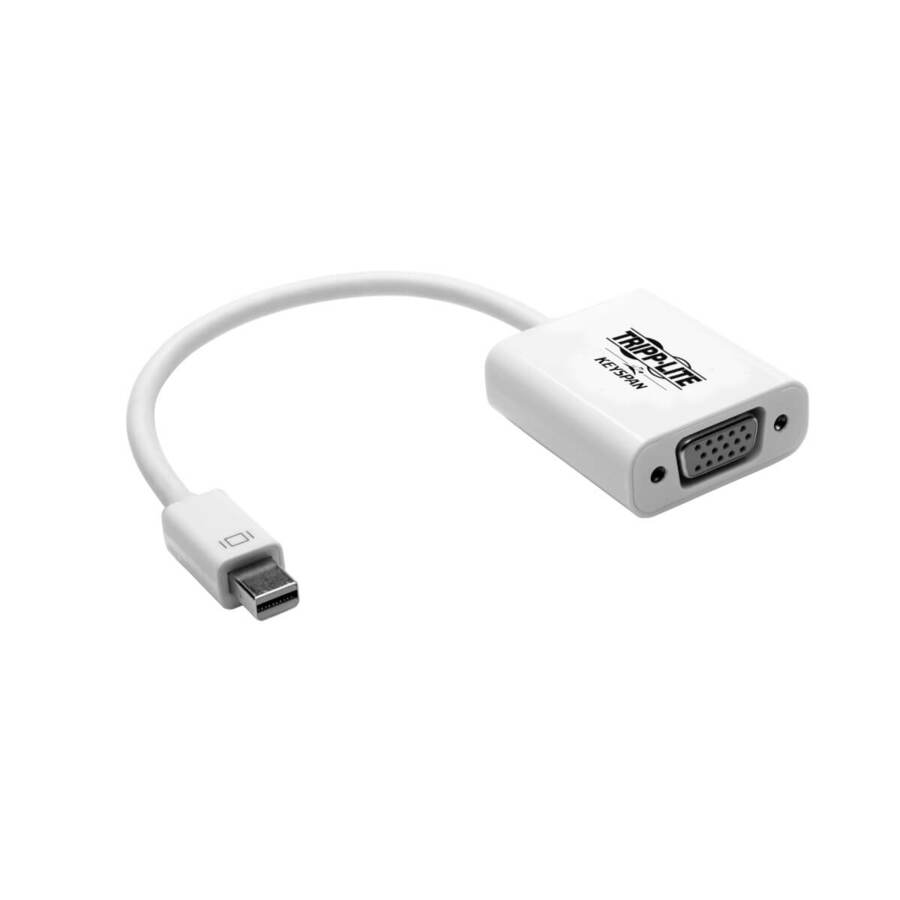

Tripp Lite's P137-06N-VGA-V2 Mini-DisplayPort v1.2 to VGA Active Adapter Converter allows you to connect a computer with a Mini-DisplayPort or Thunderbolt™ connection to a VGA monitor. Ideal for Thunderbolt™ /Mini DisplayPort equipped laptops, Chromebooks, MacBooks and Microsoft Surface. Mac 10.11, Windows 10 Compatible. DisplayPort v1.2 doubles the previous version bandwidth of 8.64 Gbps to 17.28 Gbps in High Bit Rate (HBR2) mode, which allows increased resolutions, higher refresh rates, and greater color depth. Supports VGA computer video resolutions up to 1920 x 1200 and HD resolutions up to 1080p. Unlike passive adapters, Active adapters convert both Single-Mode and Dual Mode (DP++) DisplayPort output. It is ideal for use with graphics cards, such as AMD Eyefinity, that do not output Dual Mode (DP++) signals.
| |
| Transource eSKU | 1030217189 |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | P137-06N-VGA-V2 |
| Manufacturer Website Address | http://www.tripplite.com |
| Brand Name | Tripp Lite |
| Product Model | P137-06N-VGA-V2 |
| Product Name | Mini Displayport 1.2 to VGA M/F |
| Product Type | A/V Cable |
| |
| General Information |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | P137-06N-VGA-V2 |
| Manufacturer Website Address | http://www.tripplite.com |
| Brand Name | Tripp Lite |
| Product Model | P137-06N-VGA-V2 |
| Product Name | Mini Displayport 1.2 to VGA M/F |
| Marketing Information | Tripp Lite's P137-06N-VGA-V2 Mini-DisplayPort v1.2 to VGA Active Adapter Converter allows you to connect a computer with a Mini-DisplayPort or Thunderbolt™ connection to a VGA monitor. Ideal for Thunderbolt™ /Mini DisplayPort equipped laptops, Chromebooks, MacBooks and Microsoft Surface. Mac 10.11, Windows 10 Compatible. DisplayPort v1.2 doubles the previous version bandwidth of 8.64 Gbps to 17.28 Gbps in High Bit Rate (HBR2) mode, which allows increased resolutions, higher refresh rates, and greater color depth. Supports VGA computer video resolutions up to 1920 x 1200 and HD resolutions up to 1080p. Unlike passive adapters, Active adapters convert both Single-Mode and Dual Mode (DP++) DisplayPort output. It is ideal for use with graphics cards, such as AMD Eyefinity, that do not output Dual Mode (DP++) signals. |
| Product Type | A/V Cable |
| Technical Information |
| Cable Type | DisplayPort/VGA |
| Cable Length | 6" |
| Connector on First End | 1 x Mini DisplayPort Male DisplayPort 1.2 Digital Audio/Video |
| Connector on Second End | 1 x 15-pin HD-15 Female VGA |
| Device Supported | Monitor |
| Device Supported | Computer |
| Data Transfer Rate | 17.3 Gbit/s |
| Supported Resolution | 1920 x 1080 |
| Physical Characteristics |
| Color | Black |
| Miscellaneous |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Country of Origin | China |
| Warranty |
| Limited Warranty | 3 Year |
