Easy Mounting of LCD Monitors or Televisions up to 19 in.

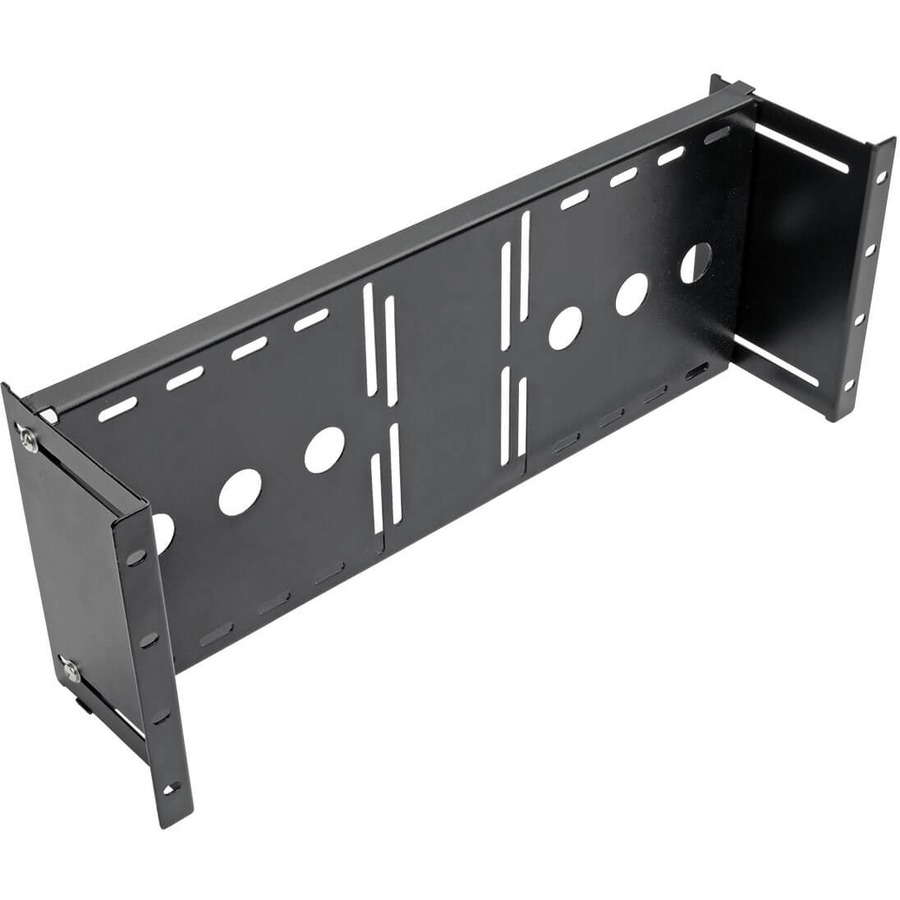

This rack-mount monitor bracket is compliant with multiple VESA patterns, making it compatible with a wide range of retail LCD displays and touch-screen monitors up to 44 pounds. The SRLCDMOUNT supports LCD monitors up to 17 inches, which allows the display to fit snugly within a closed rack. If closing rack doors isn't an issue, simply reverse the rack-mount monitor bracket so that it's facing outward. With this configuration, the SRLCDMOUNT supports LCD monitors up to 19 inches. Compatible VESA mounting-hole patterns are 75 x 75 mm, 100 x 100 mm and 100 x 150 mm.
Includes Necessary Hardware for Mounting in 4U of Rack Space
This VESA bracket fits all EIA-compliant 19-inch open frame racks and floor-standing rack enclosures. It's made from durable cold-rolled steel with a black powder-coated finish that blends seamlessly with your rack décor. Rack-mounting hardware is included, as well as a convenient Quick Start Guide that walks you through the simple rack-mounting process.
2-Year Warranty and Environmentally Responsible Design
The SRLCDMOUNT comes with a 2-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.
| |
| Transource eSKU | 1048748625 |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SRLCDMOUNT |
| Manufacturer Website Address | http://www.tripplite.com |
| Brand Name | Tripp Lite |
| Product Model | SRLCDMOUNT |
| Product Name | Monitor Rack-Mount Bracket, 4U, for LCD Monitor up to 17-19 in. |
| Product Type | Rack Mount Bracket |
| |
| Technical Information |
| Application/Usage | Monitor |
| Physical Characteristics |
| Form Factor | Rack-mountable |
| Product Color | Black |
| Product Material | Cold-rolled Steel (CRS) |
| Static/Stationary Weight Capacity | 39.68 lb |
| Height | 7" |
| Width | 19" |
| Depth | 4.5" |
| Weight (Approximate) | 3.57 lb |
| Rack Height | 4U |
| Rack Width | 19" |
| Miscellaneous |
| Package Contents | - Monitor Rack-Mount Bracket, 4U, for LCD Monitor up to 17-19 in
- 1 x Rack Brackets
- 8 x M6 x 16 Screws
- 8 x M6 Cup Washers
- 8 x M6 Cage Nuts
- 8 x M5 x 10 Screws
- 8 x M5 Flat Washers
- Installation Guide
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Country of Origin | China |
| Warranty |
| Limited Warranty | 2 Year |
