  • Tripp Lite PDU 3-Phase Metered 208/120V 5.7 kW 21 5-15/20R; 6 L6-20R 0URM

Tripp Lite PDU 3-Phase Metered 208/120V 5.7 kW 21 5-15/20R; 6 L6-20R 0URM

Tripp Lite PDU 3-Phase Metered 208/120V 5.7 kW 21 5-15/20R; 6 L6-20R 0URM - 6 x NEMA L6-20R, 21 x NEMA 5-15/20R - 5.70 kVA - Vertical Rackmount, Toolless-mount
SKU: 1000225286
Manufacturer part number: PDU3MV6L2120B
Free shipping
Manufacturer: Tripp Lite
Old price: $915.40
$576.14

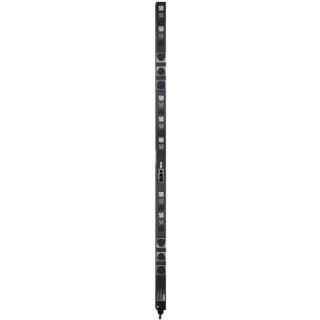

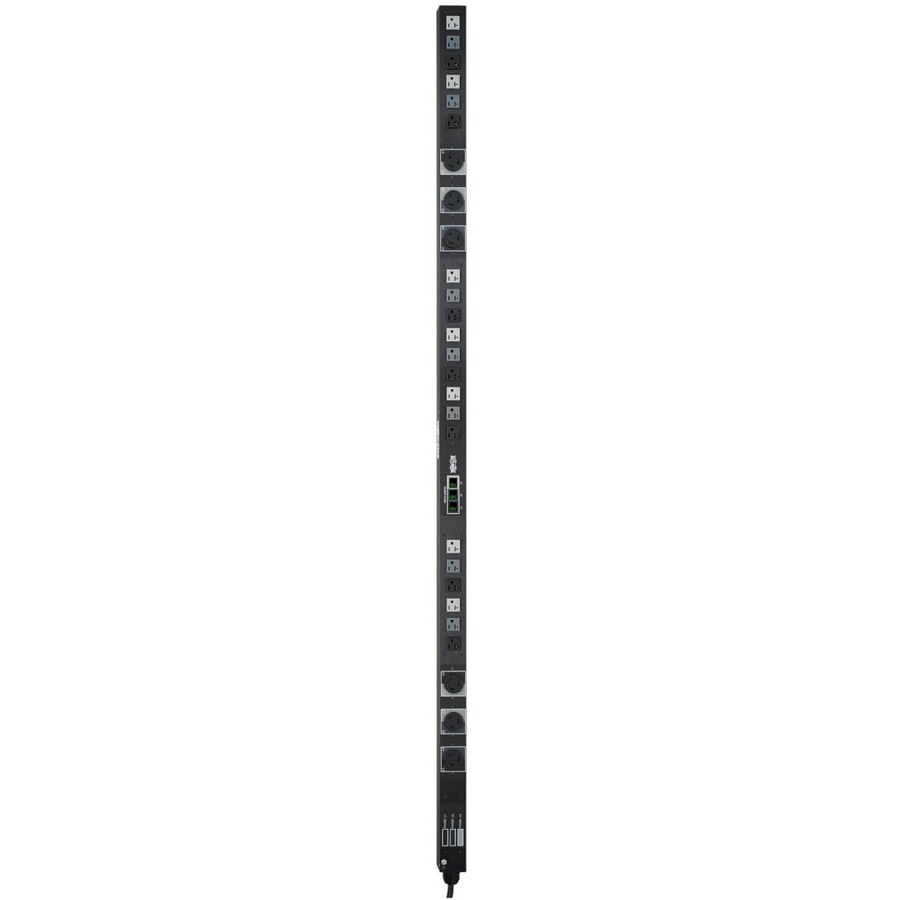

Picture of Tripp Lite PDU 3-Phase Metered 208/120V 5.7 kW 21 5-15/20R; 6 L6-20R 0URM

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Product Information
Transource eSKU1022854412
ManufacturerTripp Lite by Eaton
Manufacturer Part NumberPDU3MV6L2120B
Manufacturer Website Addresshttp://www.tripplite.com
Brand NameTripp Lite
Product SeriesMetered
Product ModelPDU3MV6L2120B
Product Name3-Phase Metered PDU
Product TypePDU

Product Specifications
Technical Information
Plug/Connector TypeNEMA L21-20P
Receptacle TypeNEMA L6-20R
Receptacle TypeNEMA 5-15/20R
Receptacle Detail6 x NEMA L6-20R
Receptacle Detail21 x NEMA 5-15/20R
Power Description
Input Voltage230 V AC
Output Voltage120 V AC
Output Voltage208 V AC
Power Rating (Watt)5700 W
Physical Characteristics
Mounting OrientationVertical
Mount TypeRack-mountable
Height70"
Width1.9"
Depth2.2"
Weight (Approximate)12.57 lb
Miscellaneous
Package Contents
  • 3-Phase Metered PDU
  • Cord Retention Brackets
  • Rack Mounting Brackets
  • User Manual
Environmentally FriendlyYes
Environmental CertificationRoHS
Country of OriginTaiwan
TAA CompliantYes
Warranty
Limited Warranty2 Year

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Product Information
Transource eSKU1022854412
ManufacturerTripp Lite by Eaton
Manufacturer Part NumberPDU3MV6L2120B
Manufacturer Website Addresshttp://www.tripplite.com
Brand NameTripp Lite
Product SeriesMetered
Product ModelPDU3MV6L2120B
Product Name3-Phase Metered PDU
Product TypePDU

Product Specifications
Technical Information
Plug/Connector TypeNEMA L21-20P
Receptacle TypeNEMA L6-20R
Receptacle TypeNEMA 5-15/20R
Receptacle Detail6 x NEMA L6-20R
Receptacle Detail21 x NEMA 5-15/20R
Power Description
Input Voltage230 V AC
Output Voltage120 V AC
Output Voltage208 V AC
Power Rating (Watt)5700 W
Physical Characteristics
Mounting OrientationVertical
Mount TypeRack-mountable
Height70"
Width1.9"
Depth2.2"
Weight (Approximate)12.57 lb
Miscellaneous
Package Contents
  • 3-Phase Metered PDU
  • Cord Retention Brackets
  • Rack Mounting Brackets
  • User Manual
Environmentally FriendlyYes
Environmental CertificationRoHS
Country of OriginTaiwan
TAA CompliantYes
Warranty
Limited Warranty2 Year
