  • Tripp Lite PDU 3-Phase Metered 208V 14.4kW 36 C13; 6 C19; 3 L6-30R 0URM

Tripp Lite PDU 3-Phase Metered 208V 14.4kW 36 C13; 6 C19; 3 L6-30R 0URM

Tripp Lite PDU 3-Phase Metered 208V 14.4kW 36 C13; 6 C19; 3 L6-30R 0URM - 6 x IEC 60320 C19, 36 x IEC 60320 C13, 3 x NEMA L6-30R - 14.40 kVA - Vertical Rackmount"
SKU: 1000216341
Manufacturer part number: PDU3MV6H50A
Manufacturer: Tripp Lite
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Old price: $1,499.48
$943.74

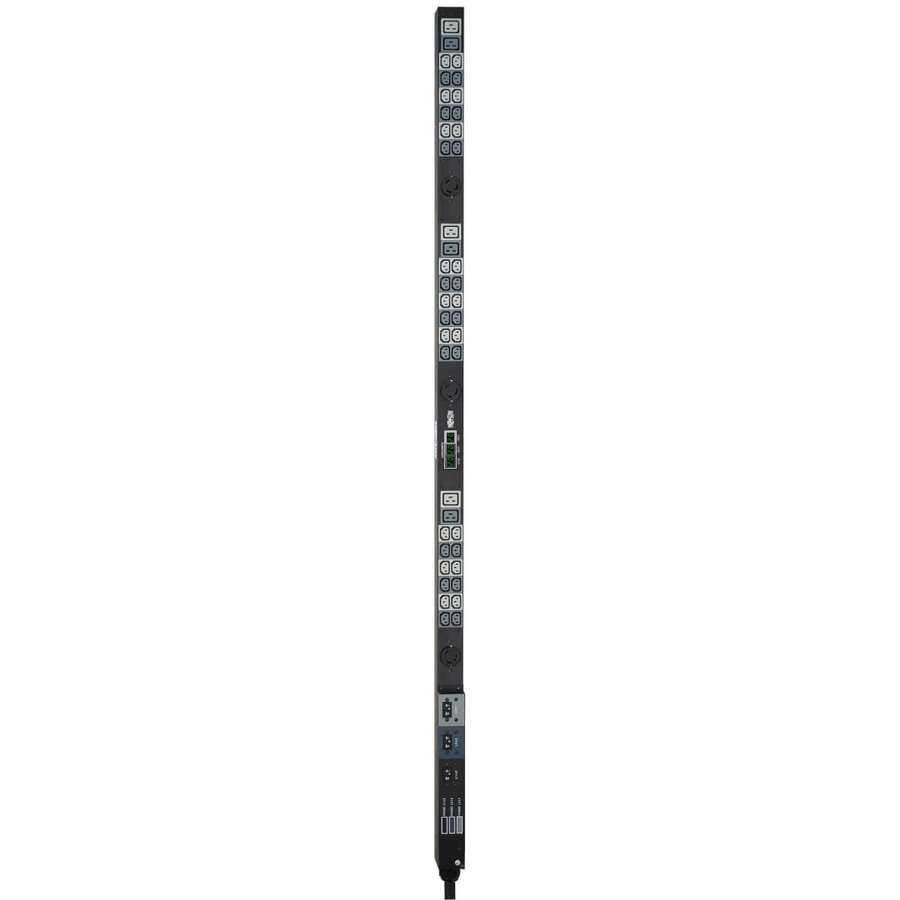

Picture of Tripp Lite PDU 3-Phase Metered 208V 14.4kW 36 C13; 6 C19; 3 L6-30R 0URM

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Product Information
Transource eSKU1022806332
ManufacturerTripp Lite by Eaton
Manufacturer Part NumberPDU3MV6H50A
Manufacturer Website Addresshttp://www.tripplite.com
Brand NameTripp Lite
Product SeriesMetered
Product ModelPDU3MV6H50A
Product NameMetered PDU3MV6H50A 45-Outlets PDU
Product TypePDU

Product Specifications
Technical Information
Plug/Connector TypeHubbell CS8365C
Receptacle TypeIEC 60320 C19
Receptacle TypeIEC 60320 C13
Receptacle TypeNEMA L6-30R
Receptacle Detail6 x IEC 60320 C19
Receptacle Detail36 x IEC 60320 C13
Receptacle Detail3 x NEMA L6-30R
Protection TypeOverload Protection
Power Description
Input Voltage230 V AC
Output Voltage208 V AC
Power Rating (Watt)14.40 kW
Physical Characteristics
Mounting OrientationVertical
Mount TypeRack-mountable
Height70"
Width2.7"
Depth2.2"
Weight (Approximate)14.50 lb
Miscellaneous
Package Contents
  • Metered PDU3MV6H50A 45-Outlets PDU
  • Cord Retention Brackets
  • Rack Mounting Brackets
  • Owner's Manual
Environmentally FriendlyYes
Environmental CertificationRoHS
Country of OriginTaiwan
TAA CompliantYes
Warranty
Limited Warranty2 Year

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Product Information
Transource eSKU1022806332
ManufacturerTripp Lite by Eaton
Manufacturer Part NumberPDU3MV6H50A
Manufacturer Website Addresshttp://www.tripplite.com
Brand NameTripp Lite
Product SeriesMetered
Product ModelPDU3MV6H50A
Product NameMetered PDU3MV6H50A 45-Outlets PDU
Product TypePDU

Product Specifications
Technical Information
Plug/Connector TypeHubbell CS8365C
Receptacle TypeIEC 60320 C19
Receptacle TypeIEC 60320 C13
Receptacle TypeNEMA L6-30R
Receptacle Detail6 x IEC 60320 C19
Receptacle Detail36 x IEC 60320 C13
Receptacle Detail3 x NEMA L6-30R
Protection TypeOverload Protection
Power Description
Input Voltage230 V AC
Output Voltage208 V AC
Power Rating (Watt)14.40 kW
Physical Characteristics
Mounting OrientationVertical
Mount TypeRack-mountable
Height70"
Width2.7"
Depth2.2"
Weight (Approximate)14.50 lb
Miscellaneous
Package Contents
  • Metered PDU3MV6H50A 45-Outlets PDU
  • Cord Retention Brackets
  • Rack Mounting Brackets
  • Owner's Manual
Environmentally FriendlyYes
Environmental CertificationRoHS
Country of OriginTaiwan
TAA CompliantYes
Warranty
Limited Warranty2 Year
