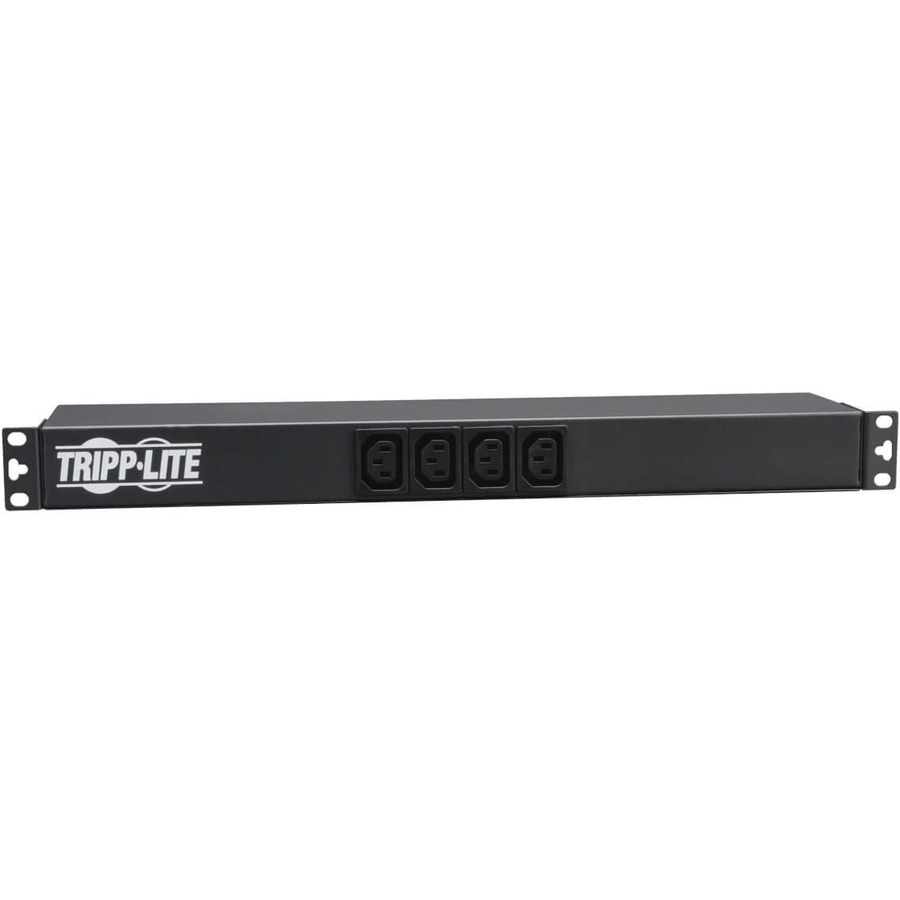

Tripp Lite's PDU12IEC AC power distribution unit offers 16 amp capacity in a versatile 100-240 volt, worldwide compatible, multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 14 outlets measuring only 4.25 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU12IEC ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 IEC320 C13 and 2 IEC320 C19 outlets, IEC320 C20 inlet connector (user supplies appropriate input cable), set of 16 amp circuit breakers, grounding lug and rugged all-metal case design.
| |
| Transource eSKU | 10448447 |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDU12IEC |
| Manufacturer Website Address | http://www.tripplite.com |
| Brand Name | Tripp Lite |
| Product Model | PDU12IEC |
| Product Name | PDU12IEC PDU Basic 100V - 240V 16A 14 Outlet |
| Product Type | PDU |
| |
| Technical Information |
| PDU Type | Basic |
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Detail | 12 x IEC 60320 C13 |
| Receptacle Detail | 2 x IEC 60320 C19 |
| Power Description |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Physical Characteristics |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Miscellaneous |
| Package Contents | - PDU12IEC PDU Basic 100V - 240V 16A 14 Outlet
- Warranty information
- Instruction manual
|
| Country of Origin | China |
| Warranty |
| Limited Warranty | 5 Year |
