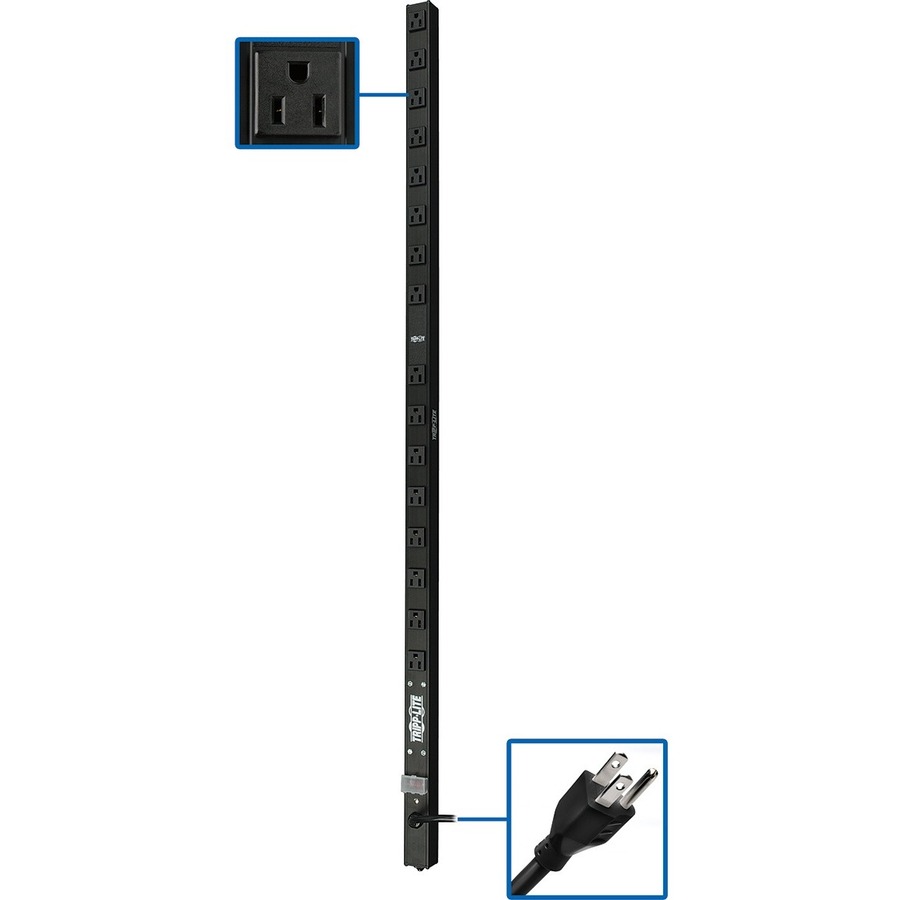

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads
This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV15-48 features 16 NEMA 5-15R outlets for connecting equipment. A 15-foot cord with 5-15P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment
A lighted on/off switch is protected by a transparent plastic cover to help prevent an accidental shutdown that could lead to costly downtime. A 15A circuit breaker protects connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices
The 48-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface.
Product Information |
|
| Transource eSKU |
1000217202 |
| Manufacturer |
TRIPP LITE |
| Manufacturer Part Number |
PDUV15-48 |
| Manufacturer Website Address |
https://tripplite.eaton.com/ |
| Brand Name |
Tripp Lite by Eaton |
| Product Model |
PDUV15-48 |
| Product Name |
PDUV15-48 16-Outlets PDU |
| Product Type |
PDU |
Technical Specifications |
|
Technical Information |
| PDU Type |
Basic |
| Phase |
Single Phase |
| Plug/Connector Type |
NEMA 5-15P |
| Receptacle Type |
NEMA 5-15R |
| Receptacle Detail |
16 x NEMA 5-15R |
| Protection Type |
Overload Protection |
| Protection Type |
Accidental Power Shutdown |
Power Description |
| Input Voltage |
120 V AC |
| Output Voltage |
100 V AC |
| Output Voltage |
120 V AC |
| Output Voltage |
127 V AC |
| Power Rating (Watt) |
1440 W |
| Input Current |
15 A |
Physical Characteristics |
| Mounting Orientation |
Vertical |
| Placement |
Under-counter |
| Rack Height |
0U |
| Cord Length |
15 ft |
| Height |
48.5" |
| Width |
1.5" |
| Depth |
1.6" |
| Weight (Approximate) |
3.74 lb |
Miscellaneous |
| Package Contents |
- PDUV15-48 16-Outlets PDU
- Rack-Mounting Hardware
- Owner's Manual
|
| Country of Origin |
China |
| Environmentally Friendly |
Yes |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
Warranty |
| Limited Warranty |
2 Year |
