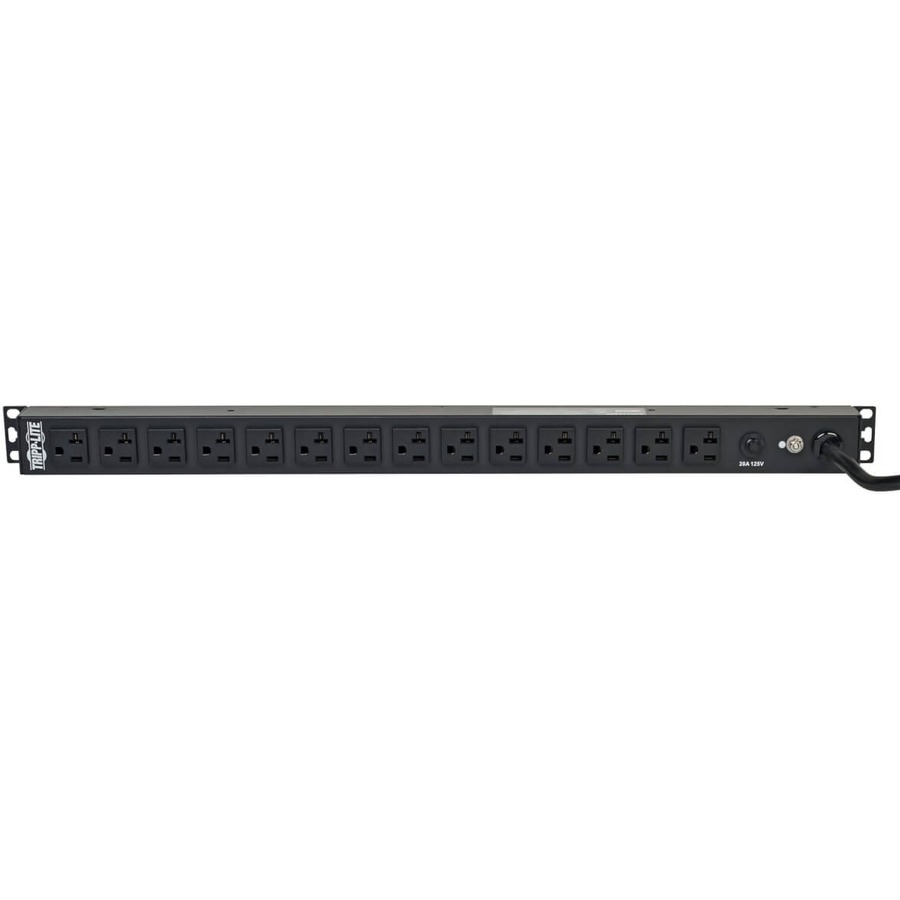

The PDU1420T 2.4kW Single-Phase 120V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU1420T features a single breakered load bank with 14 NEMA 5-15/20R outlets. The NEMA L5-20P input plug with long 15-foot (4.5 m) cord connects to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment.The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected equipment from dangerous overloads. The 24-inch all-metal housing supports toolless 0U vertical mounting in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter with user-supplied hardware.
| |
| Transource eSKU | 10287220 |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDU1420T |
| Manufacturer Website Address | http://www.tripplite.com |
| Brand Name | Tripp Lite |
| Product Model | PDU1420T |
| Product Name | PDU1420T 2.4kW Single-Phase 120V Basic PDU |
| Product Type | PDU |
| |
| Technical Information |
| PDU Type | Basic |
| Plug/Connector Type | NEMA L5-20P |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 14 x NEMA 5-15/20R |
| Power Description |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (Watt) | 2400 W |
| Physical Characteristics |
| Mounting Orientation | Horizontal/Vertical |
| Mount Type | Wall-mountable |
| Mount Type | Rack-mountable |
| Height | 1.8" |
| Width | 25.8" |
| Depth | 2.3" |
| Weight (Approximate) | 5.60 lb |
| Miscellaneous |
| Package Contents | - PDU1420T 2.4kW Single-Phase 120V Basic PDU
- Mounting Hardware
- Owner's Manual
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Country of Origin | China |
| Warranty |
| Limited Warranty | 5 Year |
