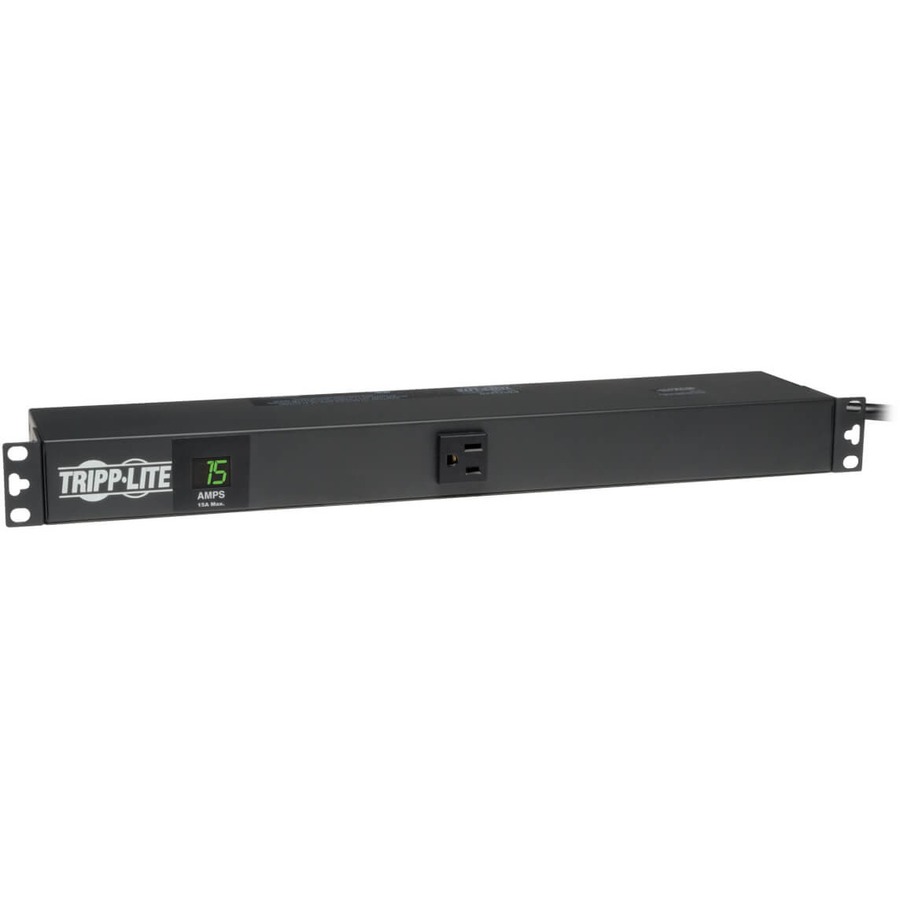

Tripp Lite's PDUMH15 AC power distribution unit offers a digital current monitor and provides 15 amps of 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potentional for zero U mounting in the cable management area of most rack enclosures. Built-in digital ammeter display offers continuous visual power consumption data for the entire PDU. Attractive rackmount housing with 1 front and 12 rear facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDUMH15 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Includes 12 rear facing NEMA 5-15R and one front facing outlet, 15-ft. AC power cord, 15 amp breaker, TVSS grounding lug and rugged all metal rackmount case design.
| |
| Transource eSKU | 1010546933 |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDUMH15 |
| Manufacturer Website Address | http://www.tripplite.com |
| Brand Name | Tripp Lite |
| Product Model | PDUMH15 |
| Product Name | PDUMH15 PDU Metered 120V 15A 13 Outlet |
| Product Type | PDU |
| |
| Technical Information |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 13 x NEMA 5-15R |
| Protection Type | Overload Protection |
| Power Description |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Management |
| Management | Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment |
| Physical Characteristics |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.8" |
| Width | 17.5" |
| Depth | 4.5" |
| Weight (Approximate) | 4.50 lb |
| Miscellaneous |
| Package Contents | - PDUMH15 PDU Metered 120V 15A 13 Outlet
- PDUMH15 Metered rackmount PDU
- Owner's manual with warranty information
|
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty |
| Limited Warranty | 2 Year |
