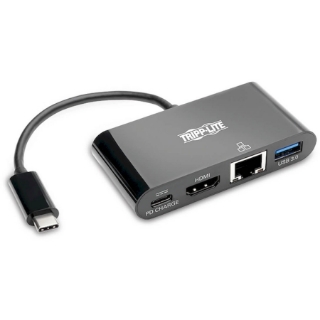

Mini Docking Station Turns Your Device's USB-C or Thunderbolt 3 Port into a Multiport Workstation
This USB 3.1 to HDMI adapter expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC's USB-C or Thunderbolt 3 port. It's ideal for transmitting digital audio and 4K video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging-compliant mobile device, and connecting to a Gigabit Ethernet network-all at the same time.
Supports USB DisplayPort Alternate Mode for Transmitting Audio/Video DisplayPort and USB Signals
With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.
Transmits Crystal-Clear 4K Video and Digital Audio to an HDMI Display
To send 7.1-channel surround sound and Ultra High Definition video to a 4K-ready HDMI television, projector or monitor, connect the HDMI port to the display using an HDMI cable (sold separately). The HDMI port supports UHD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz.
Connects a USB Peripheral
The USB-A port accepts USB peripherals, such as a flash drive, mouse, keyboard or printer. It supports fast USB 3.1 Gen 1 data transfer rates up to 5 Gbps and is backward compatible with USB 2.0 and USB 1.1 devices.
Charges a Connected Device
The USB-C Power Delivery (PD) port provides power and charging to the PD Charging-compliant device (such as a MacBook, Chromebook or Android smartphone) the U444-06N-H4GUB-C is connected to. Connect the device's AC wall charger to the USB-C PD port, which supports power input up to 20V 3A (60W).
Accesses a Wired Gigabit Ethernet Network
The RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.
Built-In USB-C Cable Connects in Either Direction
Connect the reversible USB-C plug to your source device's USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.
Ready to Use Right Out of the Package
The plug-and-play USB to HDMI adapter works with all operating systems. It requires no software, drivers or external power. The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go.
3-Year Warranty and Environmentally Responsible Design
The U444-06N-H4GUB-C comes with a 3-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.
| |
|---|
| Transource eSKU | 1044649268 |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | U444-06N-H4GUBC |
| Manufacturer Website Address | http://www.tripplite.com |
| Brand Name | Tripp Lite |
| Product Model | U444-06N-H4GUB-C |
| Product Name | U444-06N-H4GUB-C Docking Station |
| Product Type | Docking Station |
| |
|---|
| Technical Information |
| Connectivity Technology | Wired |
| Device Supported | Notebook/Tablet PC/Desktop PC/Smartphone |
| Interfaces/Ports |
| Host Interface | USB Type C |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 1 |
| Network (RJ-45) | Yes |
| HDMI | Yes |
| Thunderbolt | Yes |
| Power Description |
| Maximum Power Supply Wattage | 60 W |
| Physical Characteristics |
| Height | 0.57" |
| Width | 3.15" |
| Depth | 1.57" |
| Weight (Approximate) | 1.60 oz |
| Miscellaneous |
| Package Contents | - U444-06N-H4GUB-C Docking Station
- Owner's manual
|
| Environmentally Friendly | Yes |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Country of Origin | Vietnam |
| Warranty |
| Limited Warranty | 3 Year |
